Flux Paste Aluminum B Tube Flux Paste Manufacturers Bti Braze

alumatecTM b tube flux paste

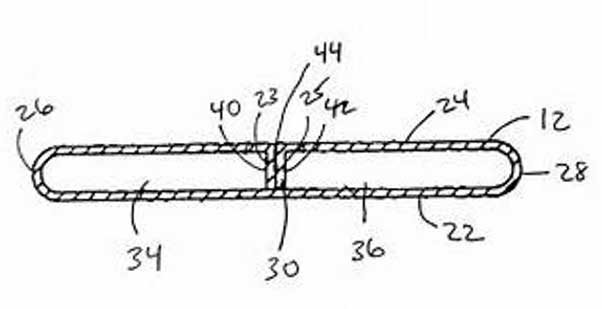

ALUMATECTM B TUBE flux is used in the manufacture of folded tubes. An internal line of flux is used on the clad surface to facilitate the flow of the brazing material on the surfaces.

AlumatecTM Active Range Process Application Process Uv Version Viscosity Flux Content
Standard 564? - 572? Auto Dispense Folded Tube Availbale 500-75000cP 10-70%
Standard Cesium 558℃ - 568℃ Auto Dispense Folded Tube Availbale 500-75000cP 10-70%
Delta Flux 564℃ - 572℃ Auto Dispense Folded Tube Availbale 500-75000cP 10-70%
Delta Flux Cesium 558℃ - 568℃ Auto Dispense Folded Tube Availbale 500-75000cP 10-70%

Flux Paste   10kg    20kg    25kg    or   20 lb.   40 lb.   50 lb.Plastic Containers

Technical Advantages

  • Custom formulated to the customer’s application
  • Consistent flux distribution
  • Consistent Viscosity
  • Clean burn off
  • Low settling characteristics

Chemical Composition

  • Potassium Aluminum Fluoride Flux
  • Cesium Fluoride: Optional
  • Carrier/Binder

Physical Properties

  • White Paste
  • 560°C - 572 °C
  • pH neutral
  • Specific Gravity: .89 - .92
  • Density: 1.1 – 1.4 g/cm³
  • Binder Decomposition: below 200 °C
  • Viscosity Range: 1000 – 75,000cP
  • Typical Range: 15,000-25,000cP
  • Typical Flux % Range: 15-45%
  • Odor: Slight
  • Odor: Slight
  • Application: .1 - .5 grams per meter
